Buying guide
How to choose drawer box systems

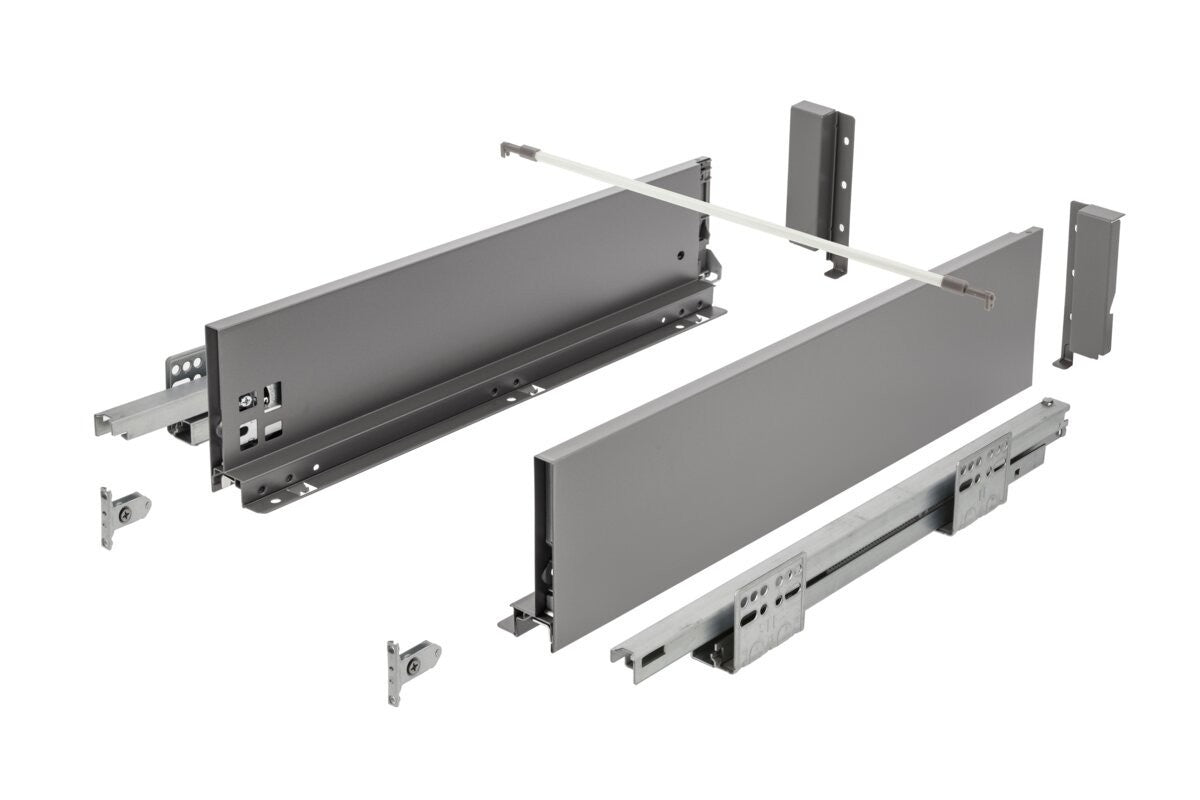

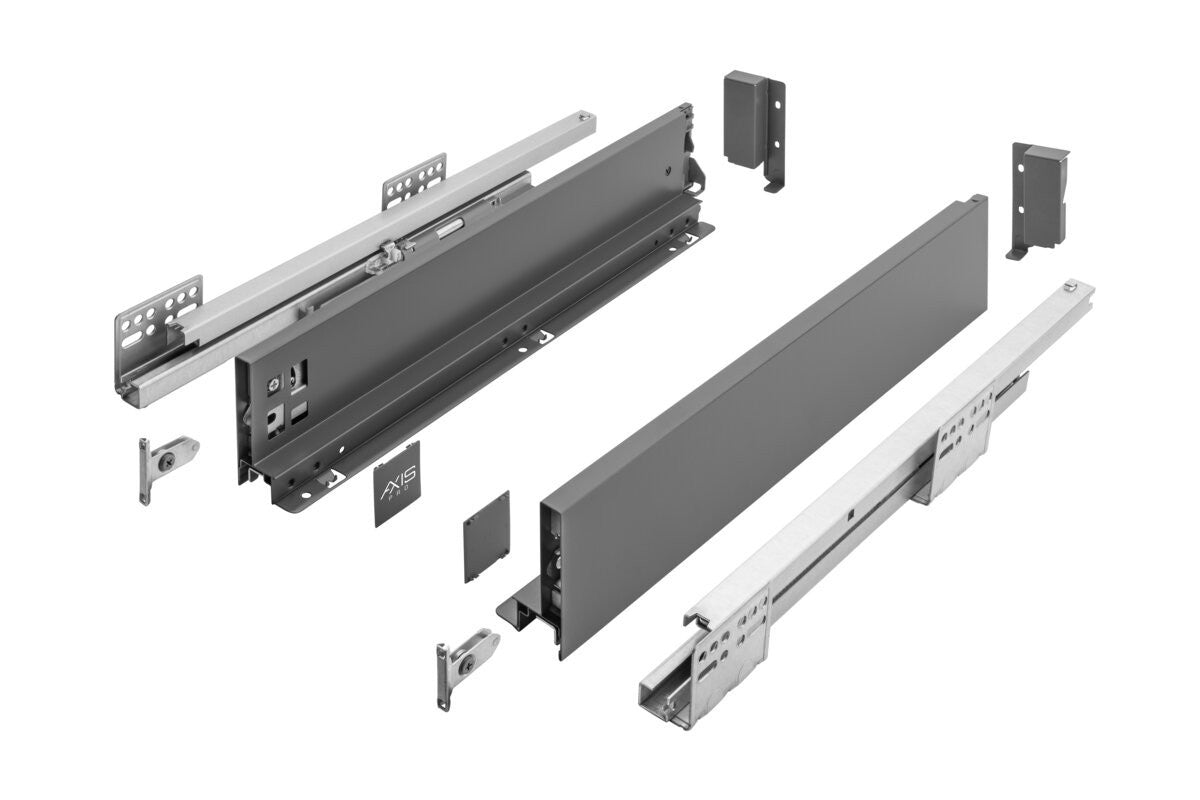

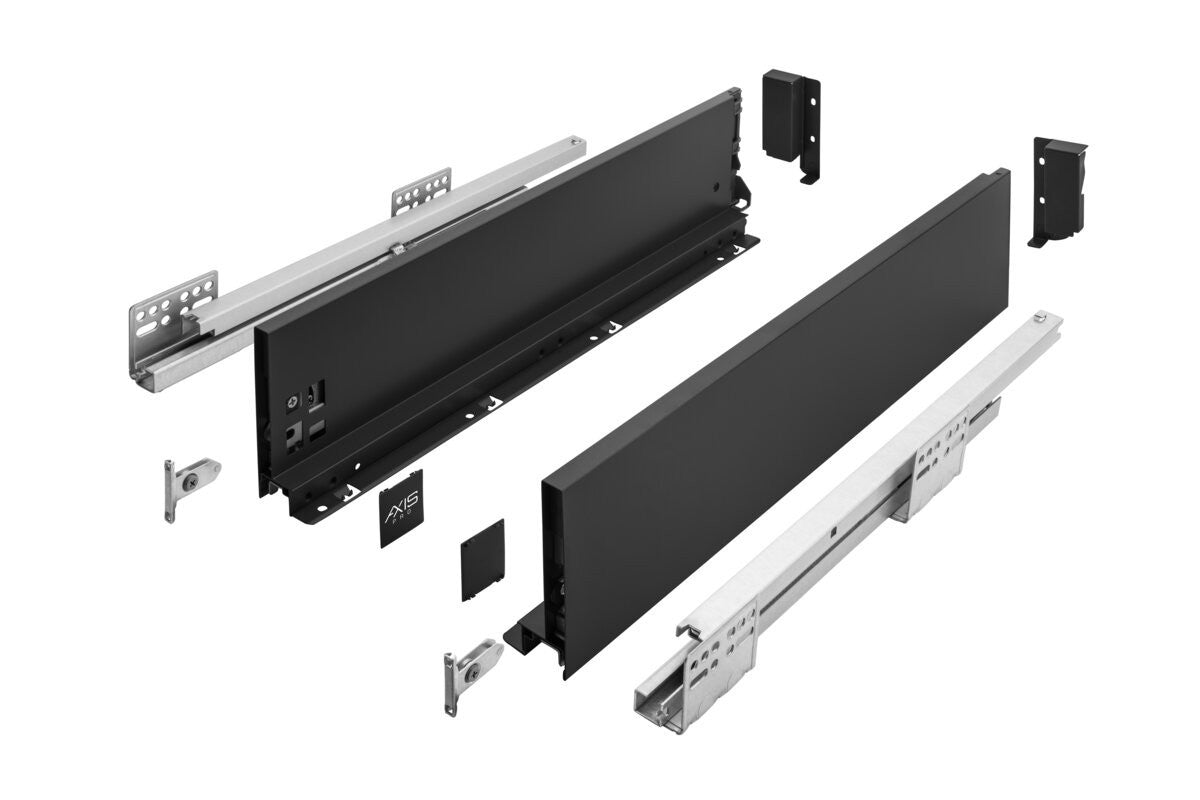

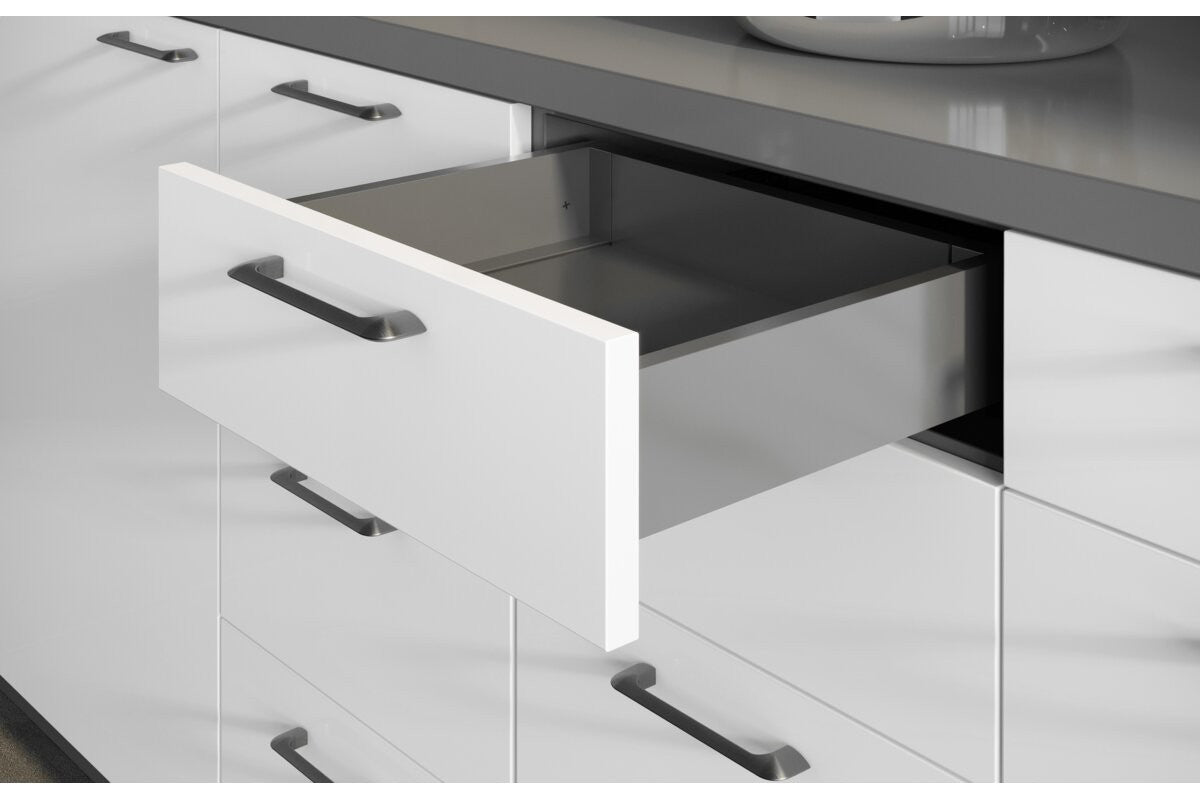

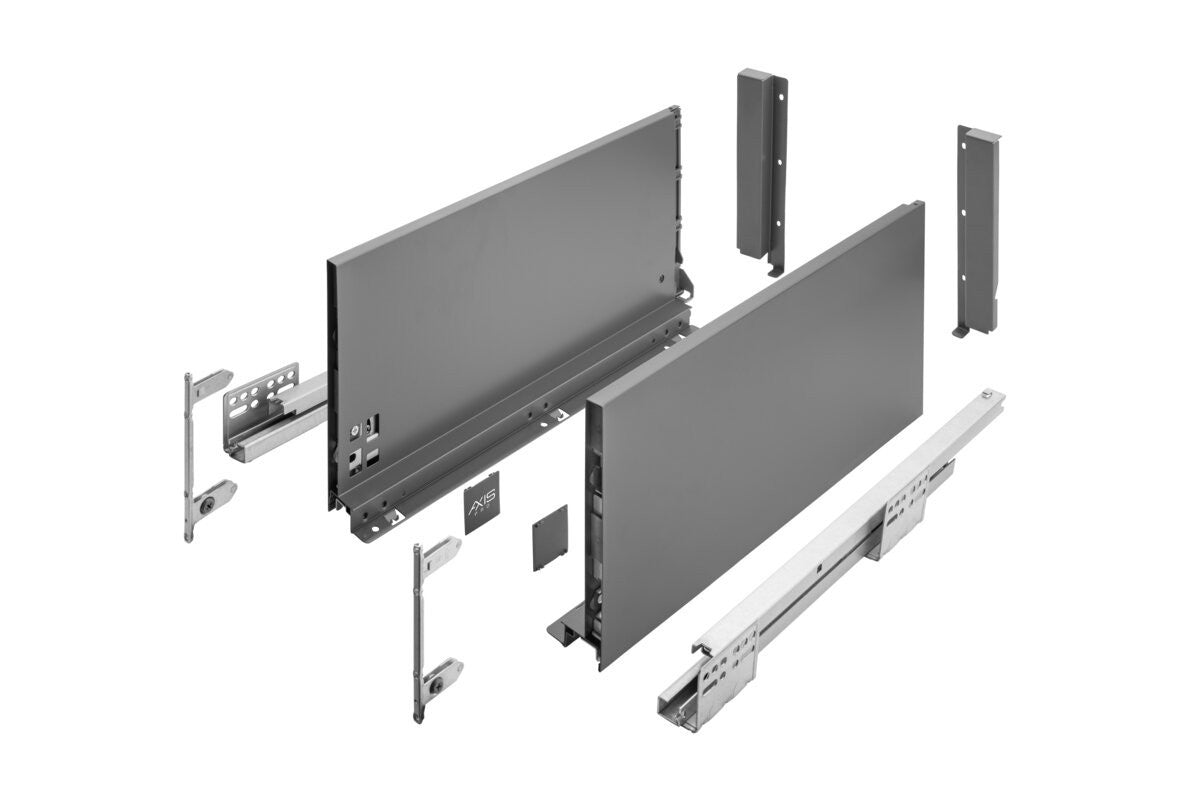

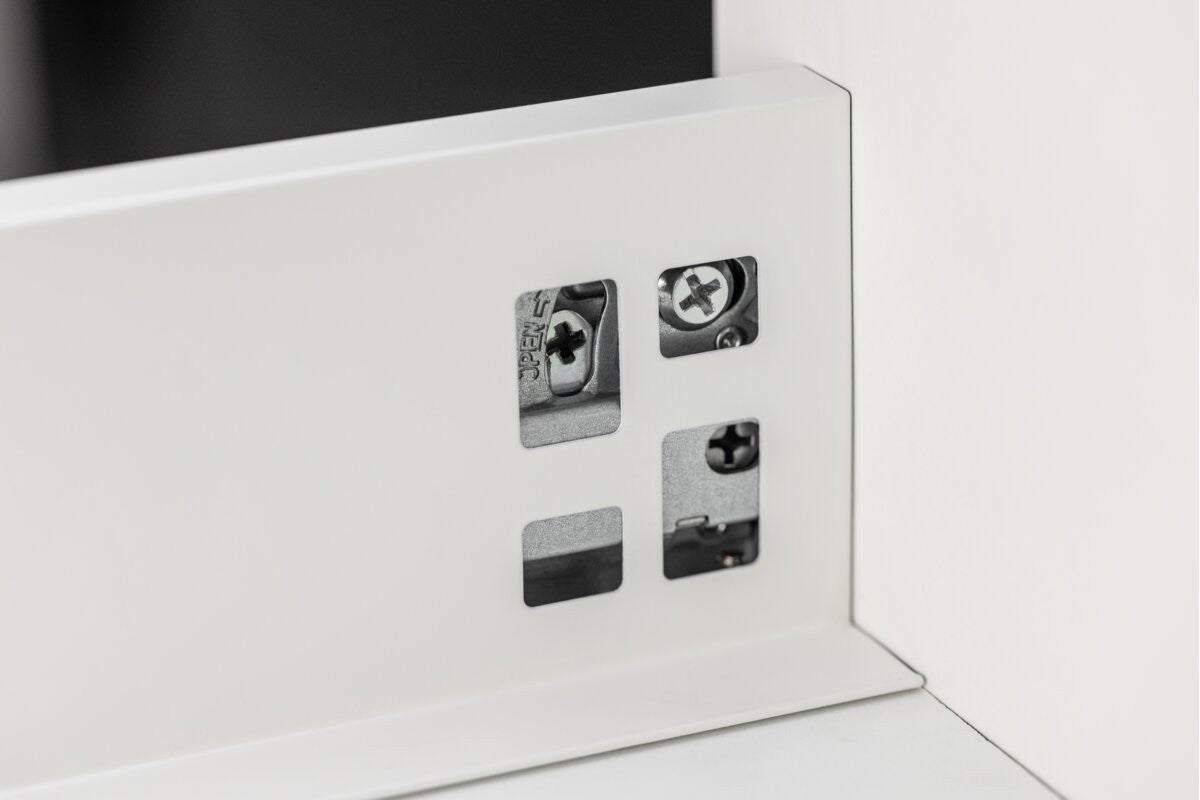

GTV Axis Pro is a slim metal drawer system: two 13 mm steel sides in anthracite with full-extension runners built in, plus front and back fixings and base clips. Cut a base and a back from 16 mm board, clip them in, screw the front on and the drawer is done – the same type of drawer you get in a branded fitted kitchen, in a fraction of the time it takes to build a board box and hang it on separate runners.
Choosing a length
Kits come in 250, 300, 350, 400, 450, 500 and 550 mm. Measure the internal depth of your cabinet (front edge to back panel) and choose a kit at least 10 mm shorter: a 500 mm deep cabinet takes a 450 mm kit, a standard 560–570 mm kitchen base unit takes a 500 or 550 mm kit. Every product page has a "Will it fit?" checker.
Choosing a height
| Side height | Front opening needed | Typical use |
|---|---|---|

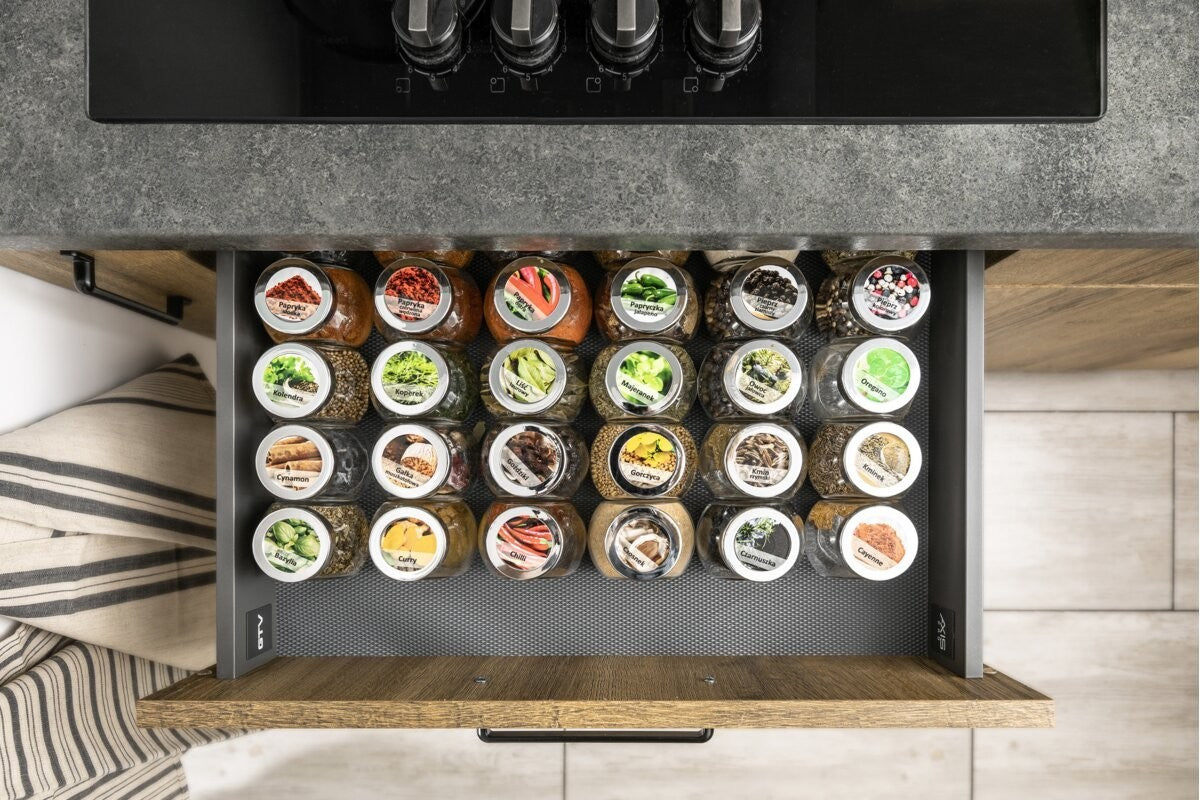

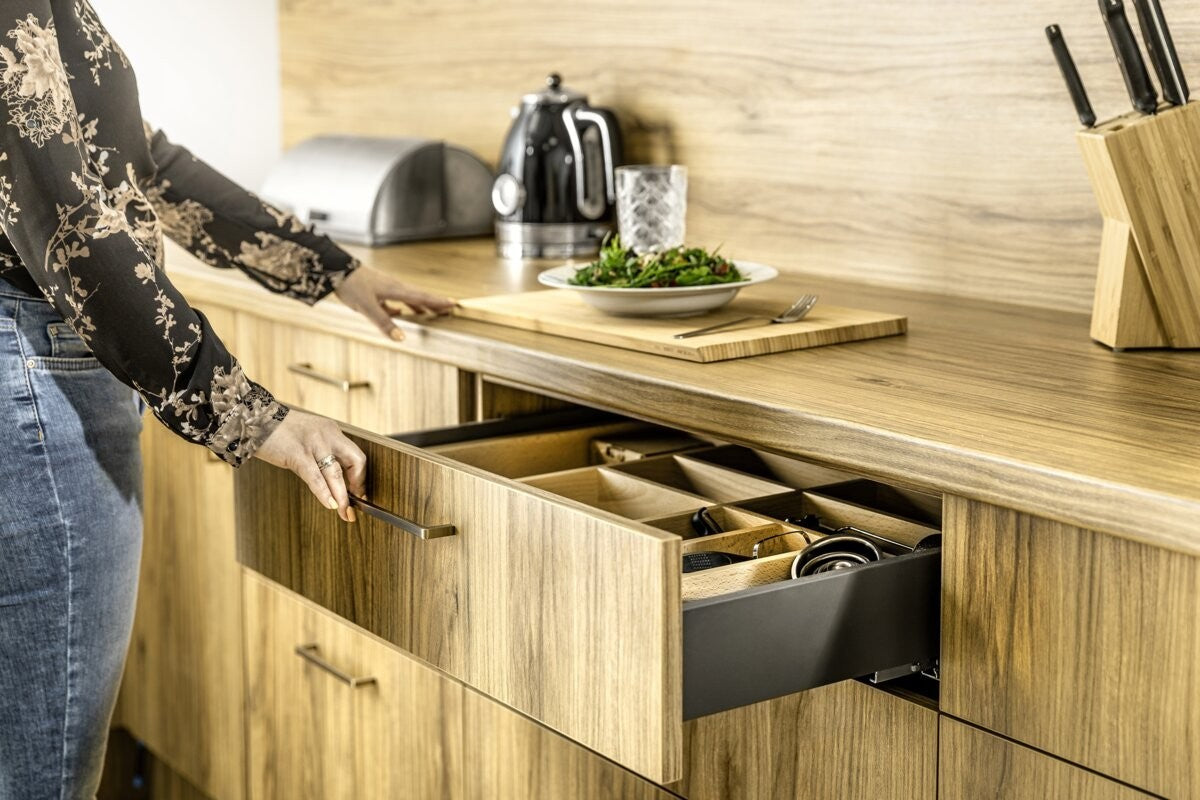

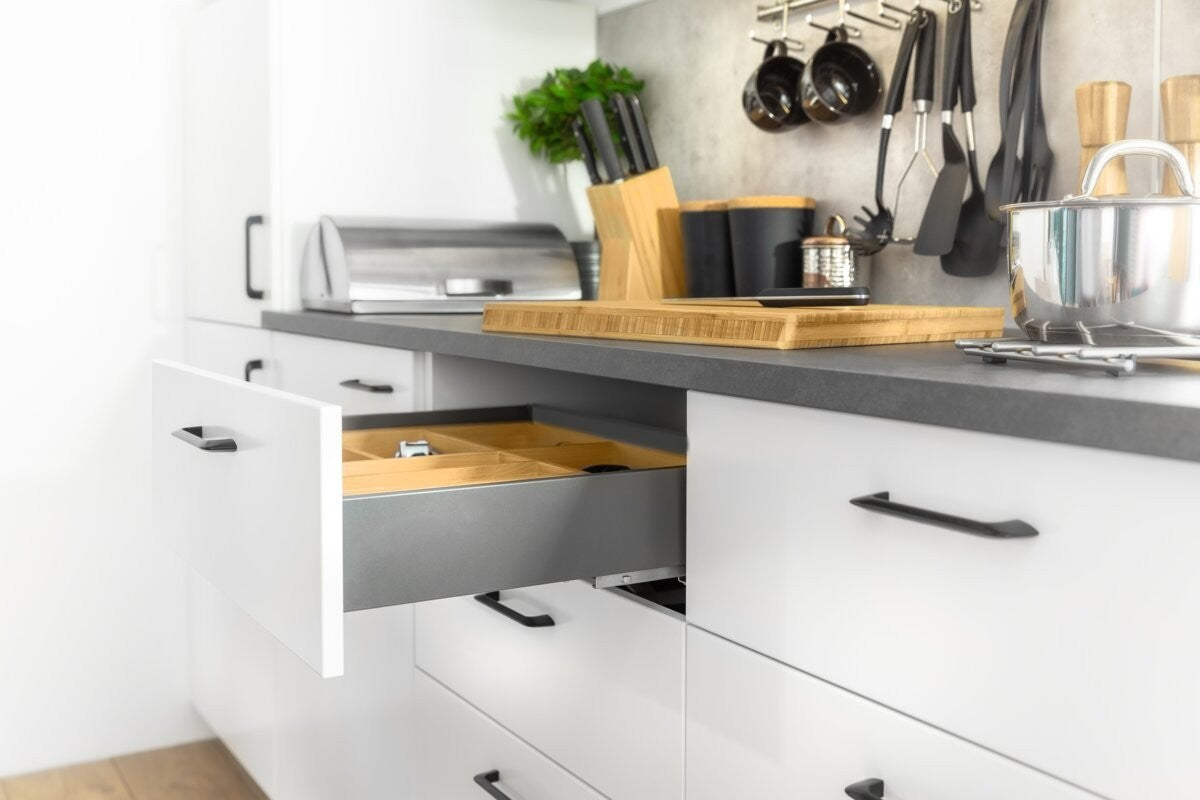

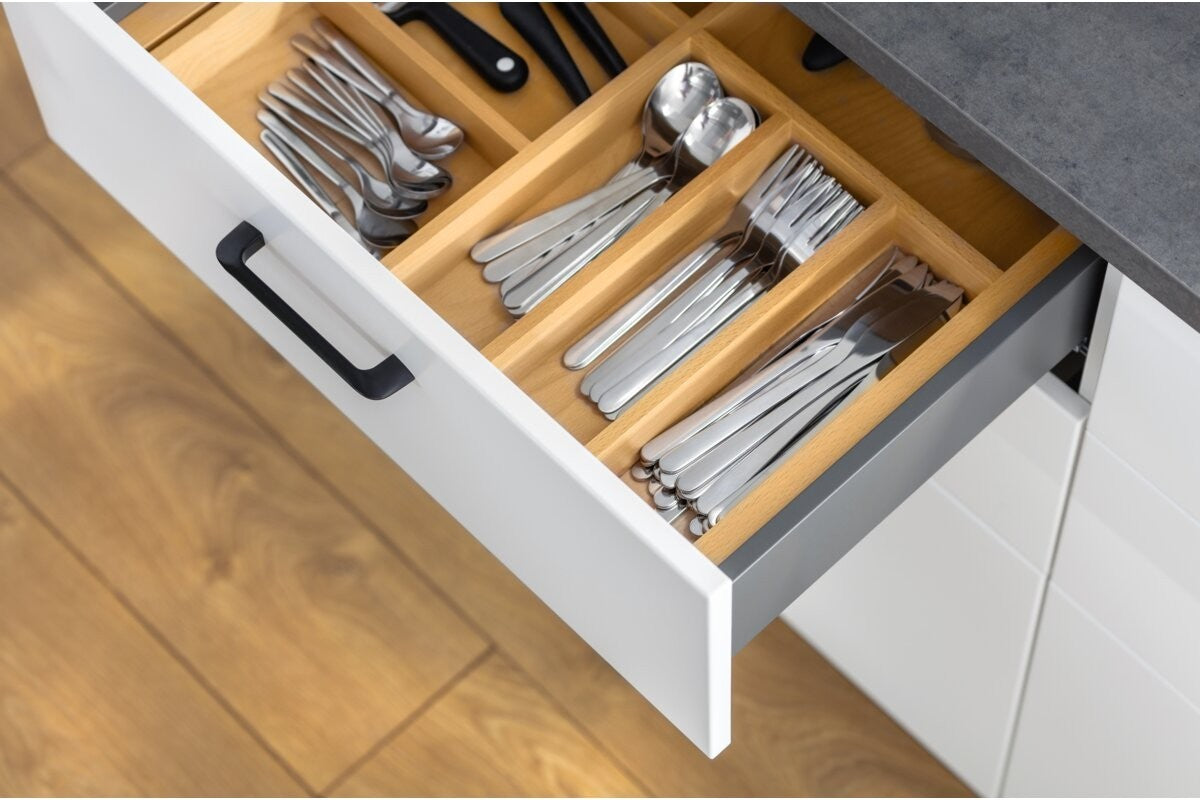

| Low – 86 mm | 115 mm | Cutlery, utensils, top drawers |
| Medium – 120 mm | 147 mm | General kitchen and bedroom drawers |

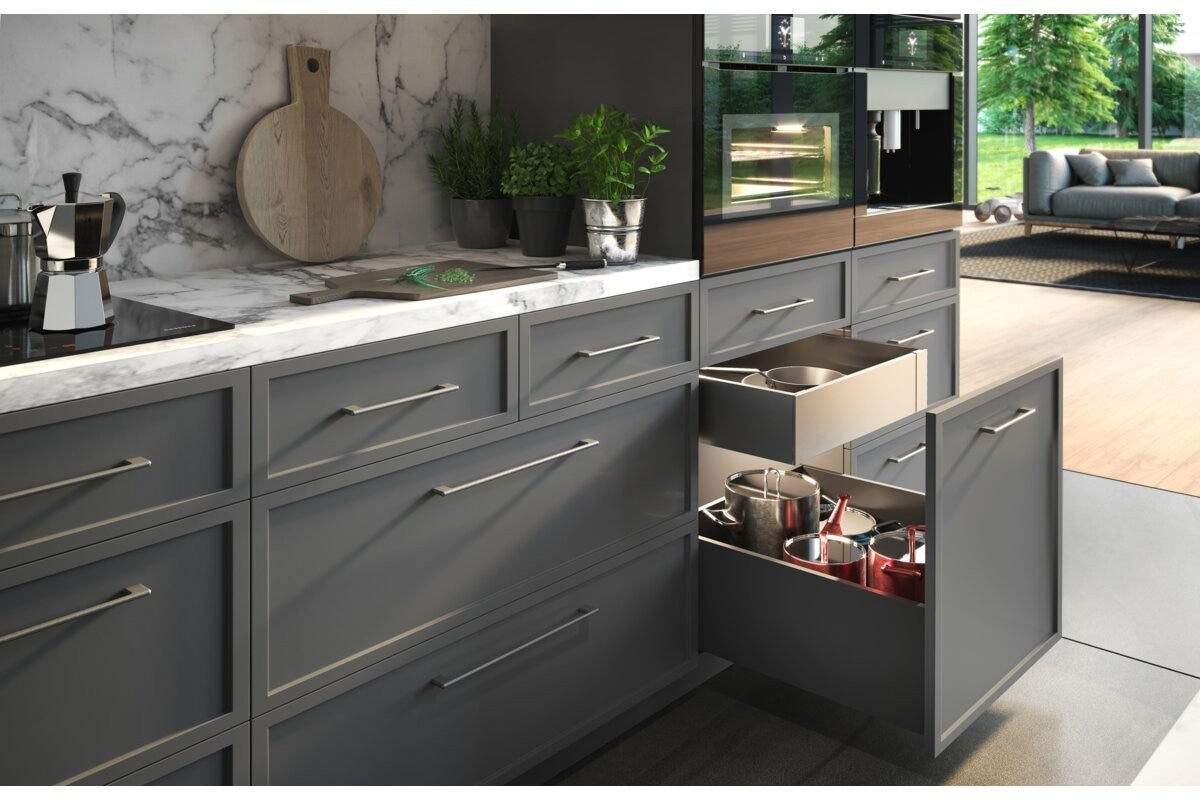

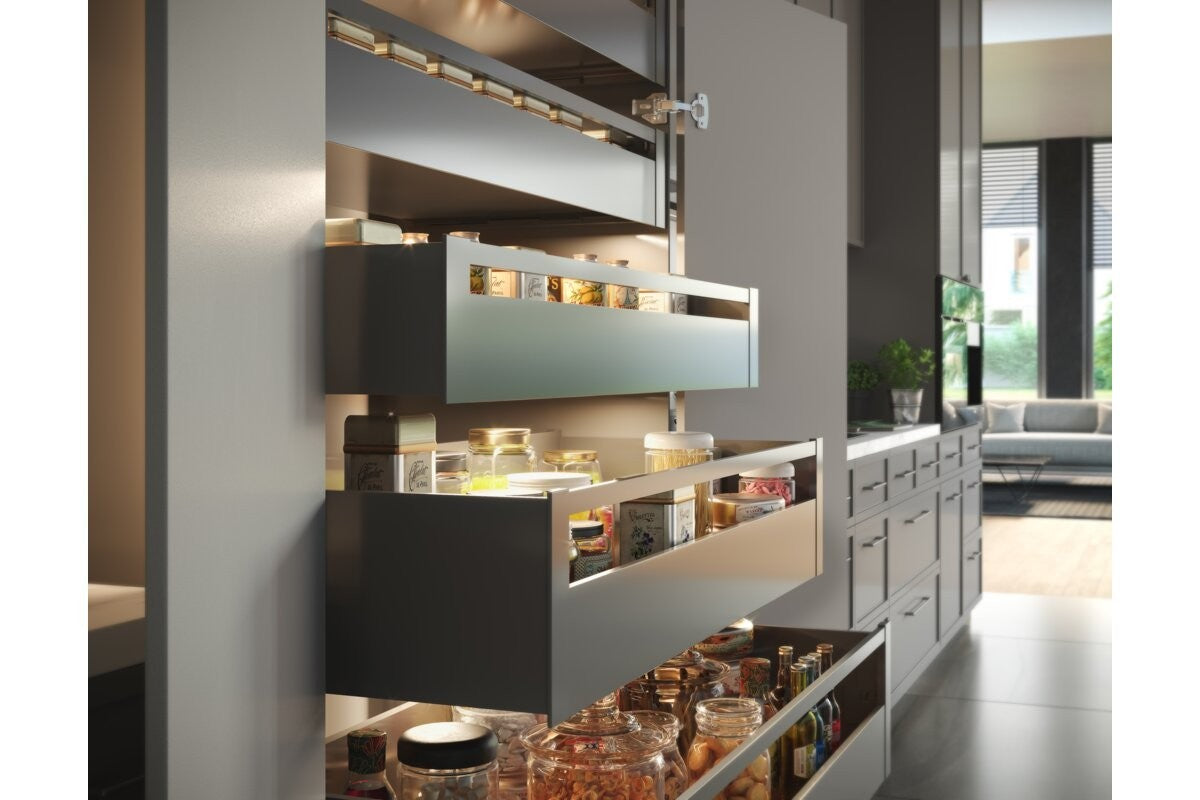

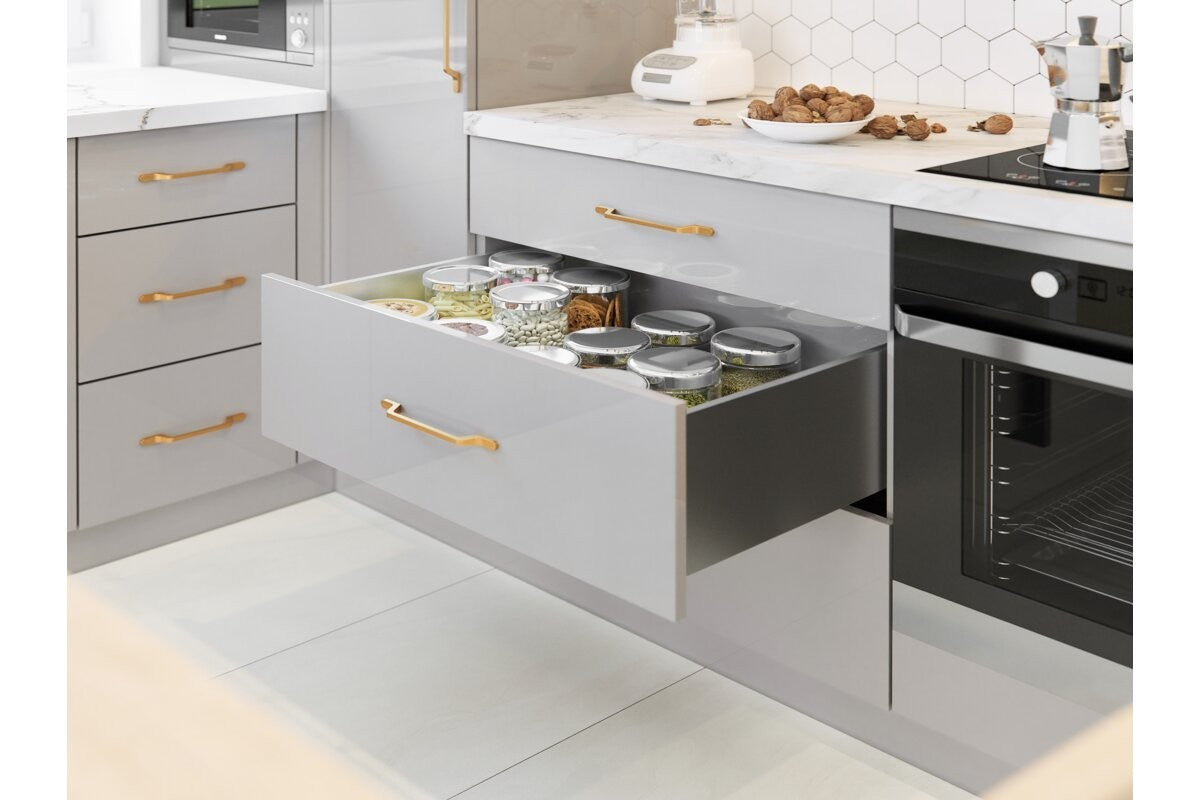

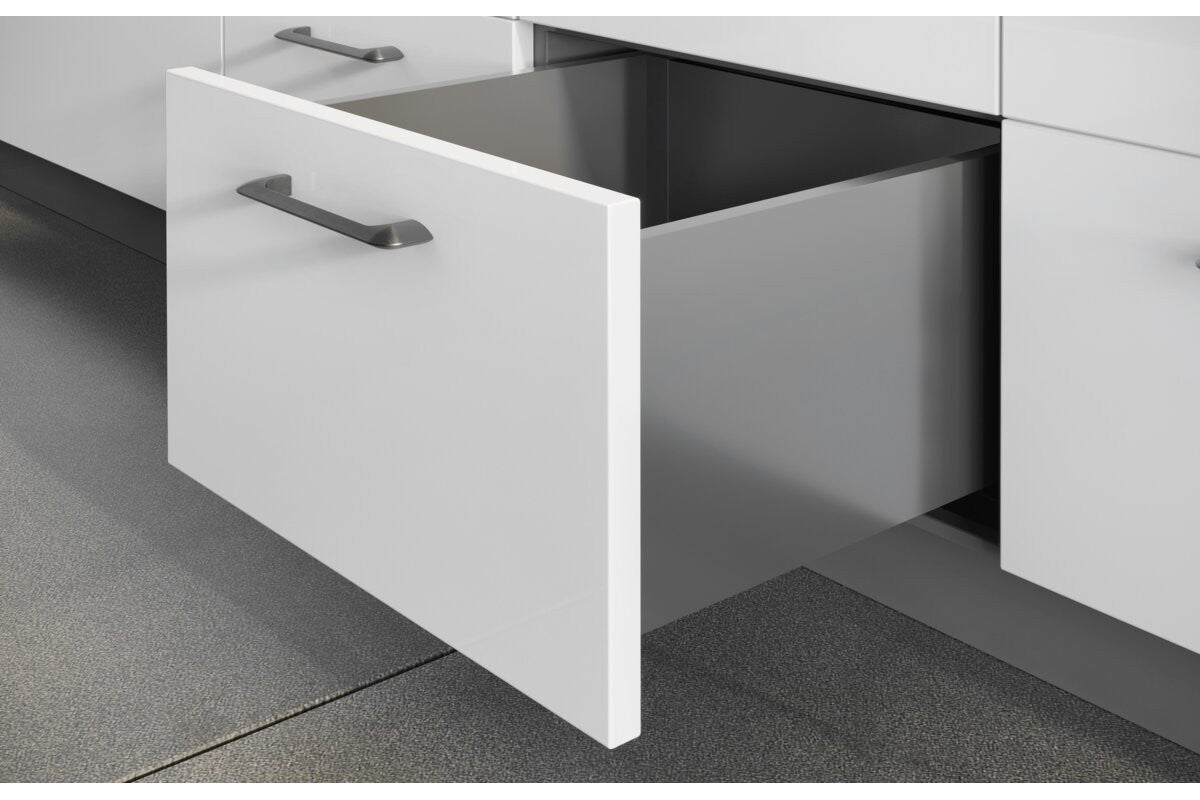

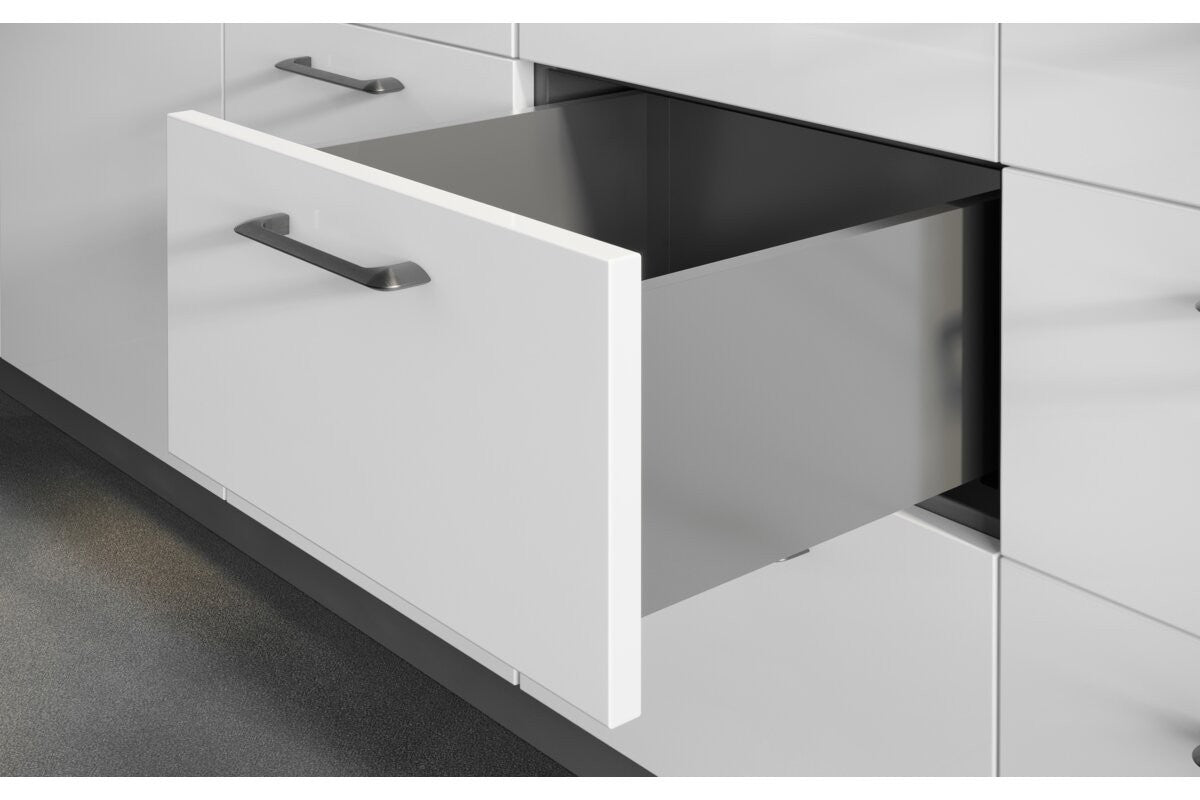

| High – 168 mm | 198 mm | Pans, crockery, deep bedroom drawers |

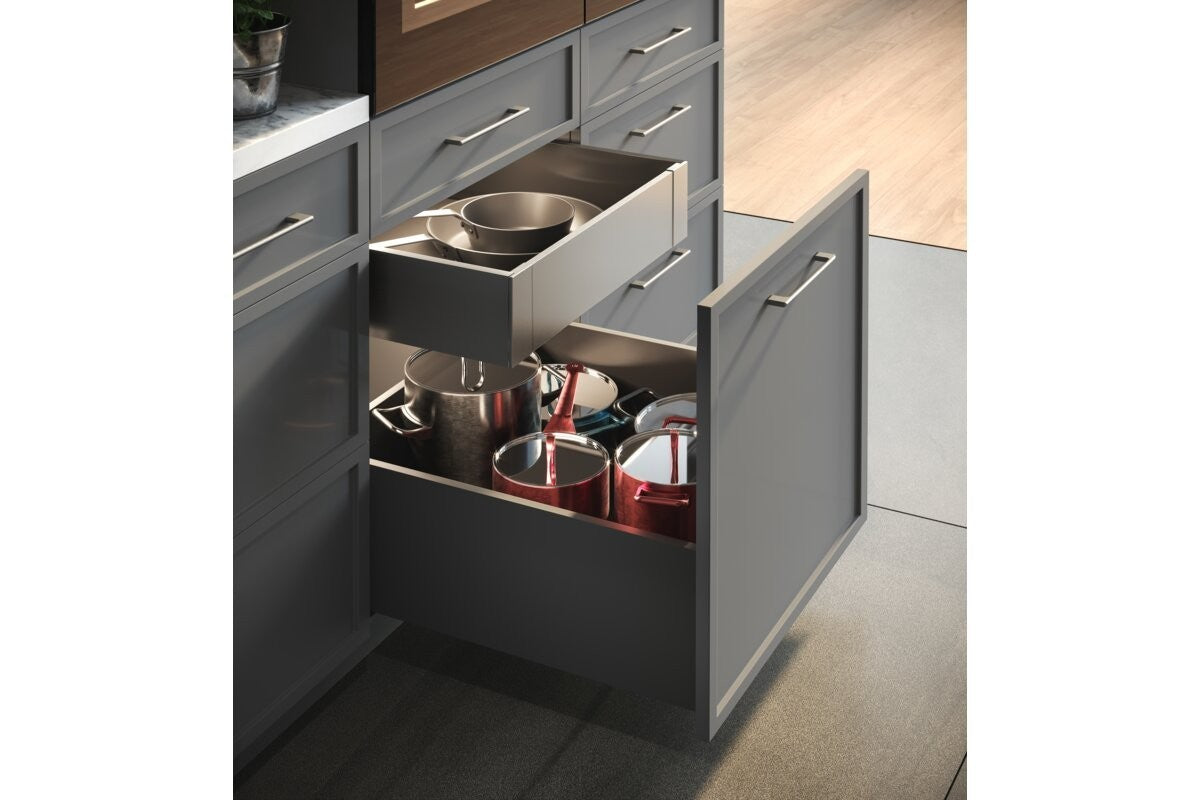

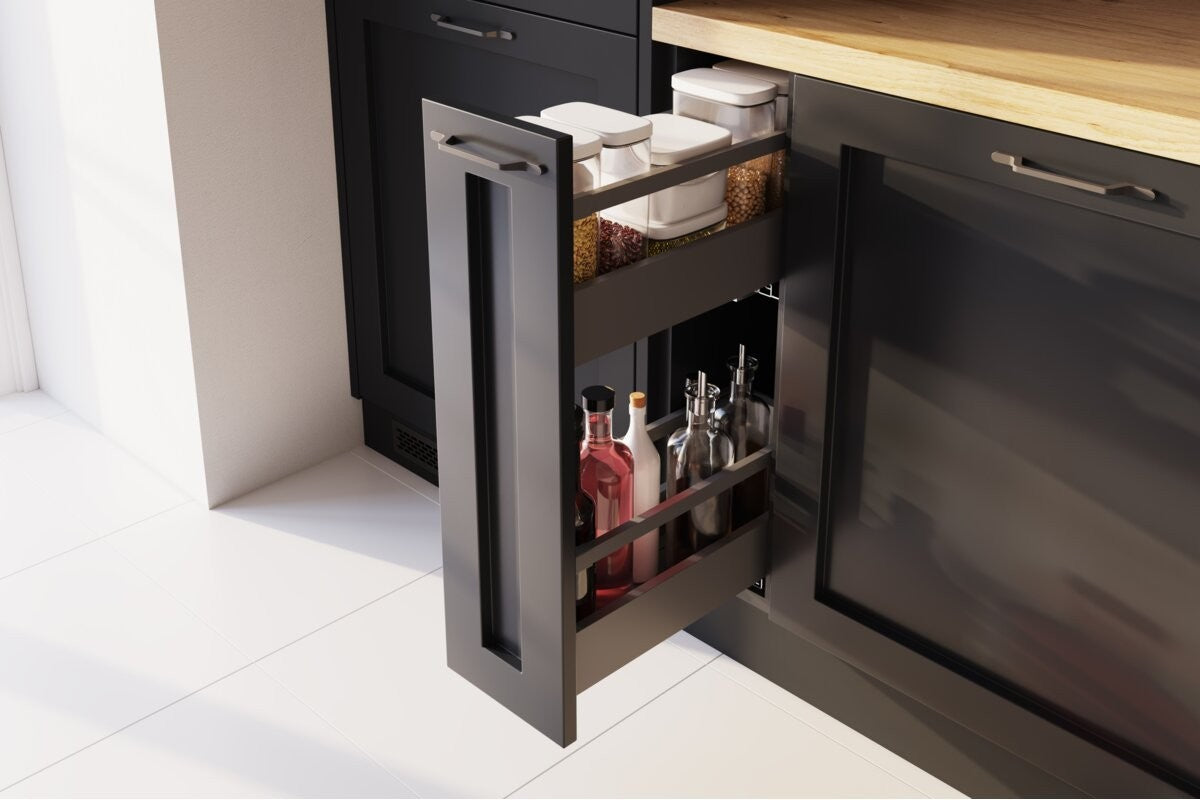

| Extra high – 199 mm | 230 mm | Large pan drawers, pull-outs |

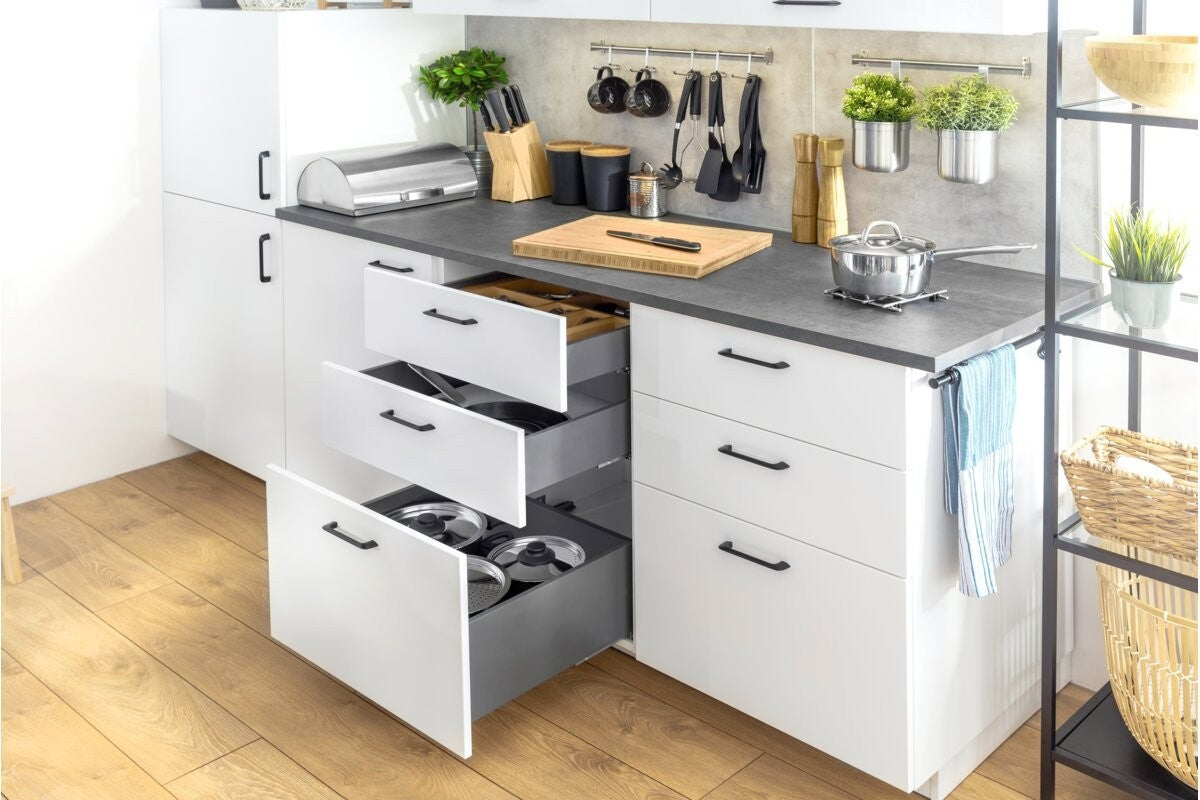

A typical three-drawer 600 mm base unit uses one low, one medium and one high box. Not sure? The drawer builder takes your cabinet size and number of drawers, checks the heights fit, picks the kits and matching handles, and adds the lot to your basket.
Soft close or push to open?

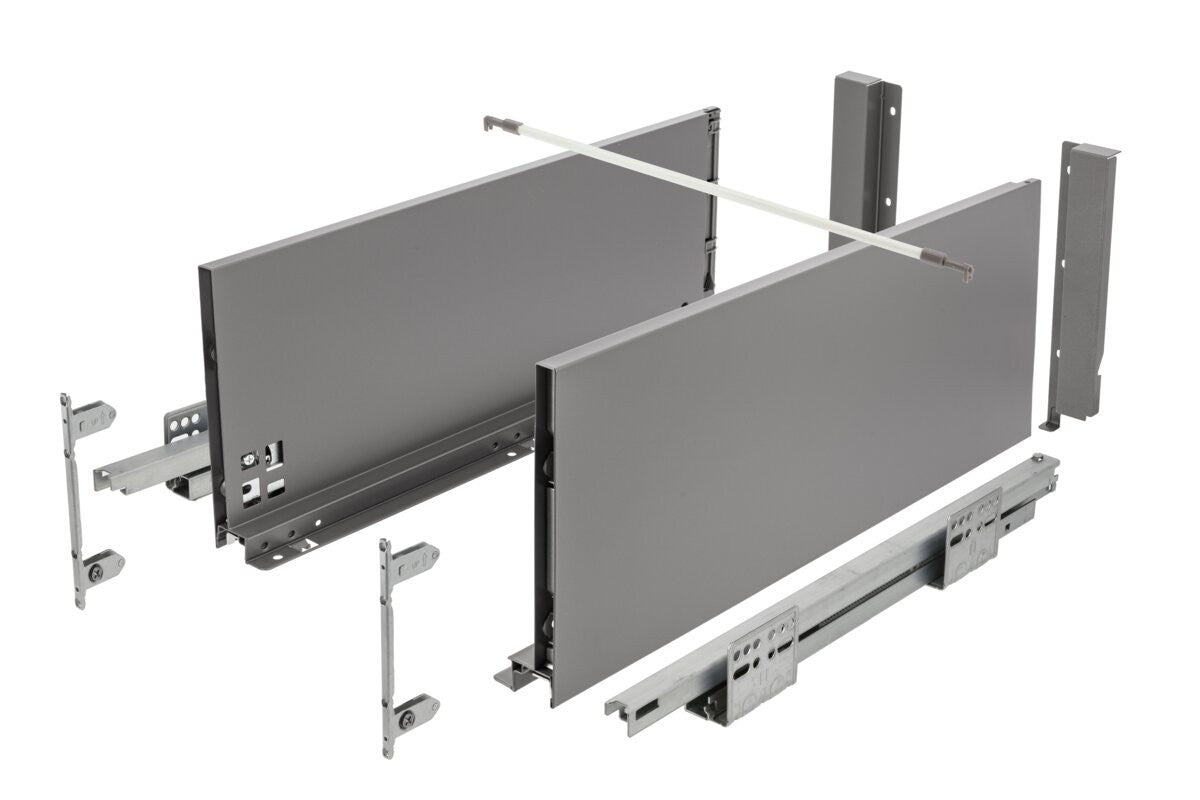

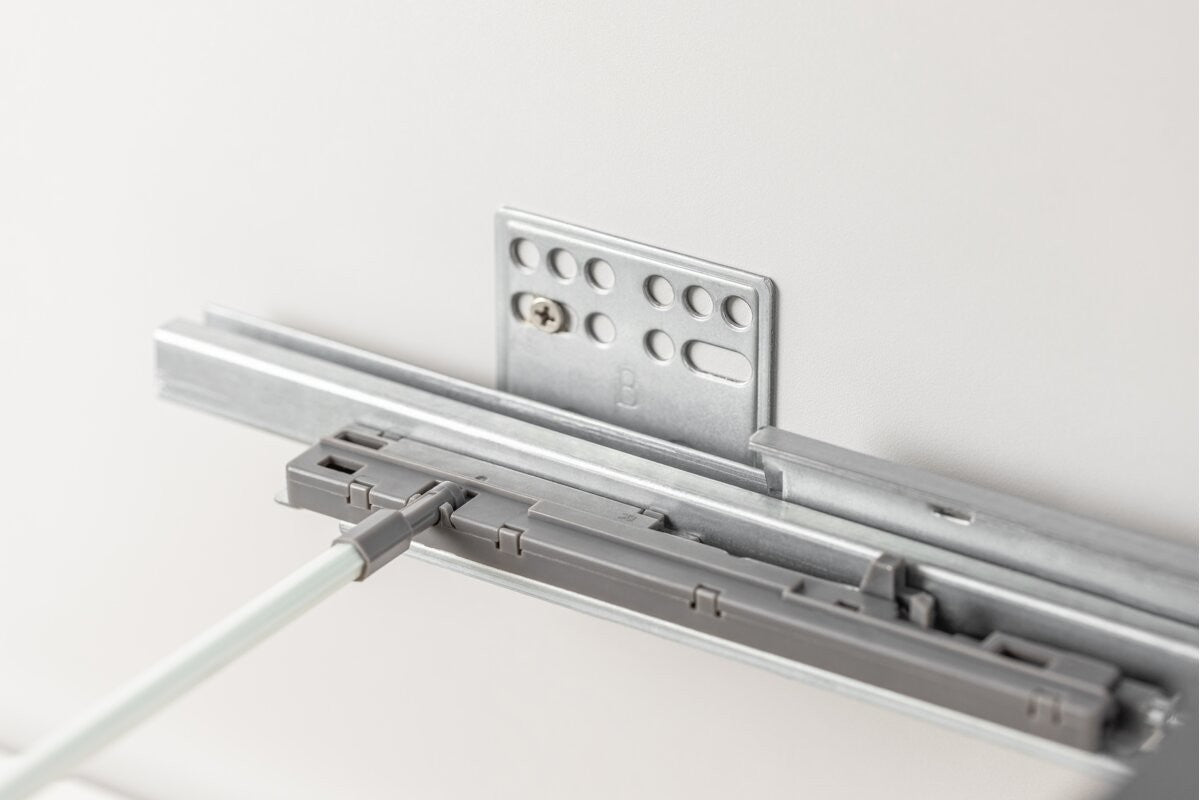

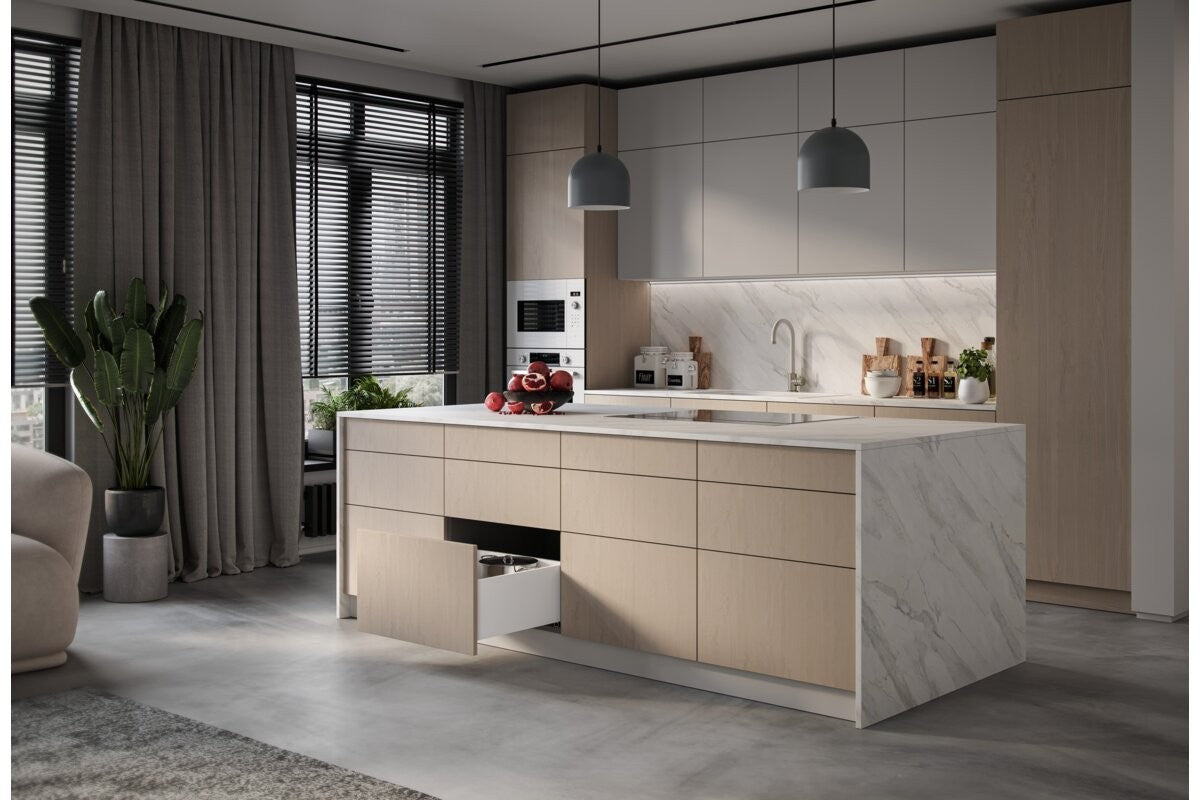

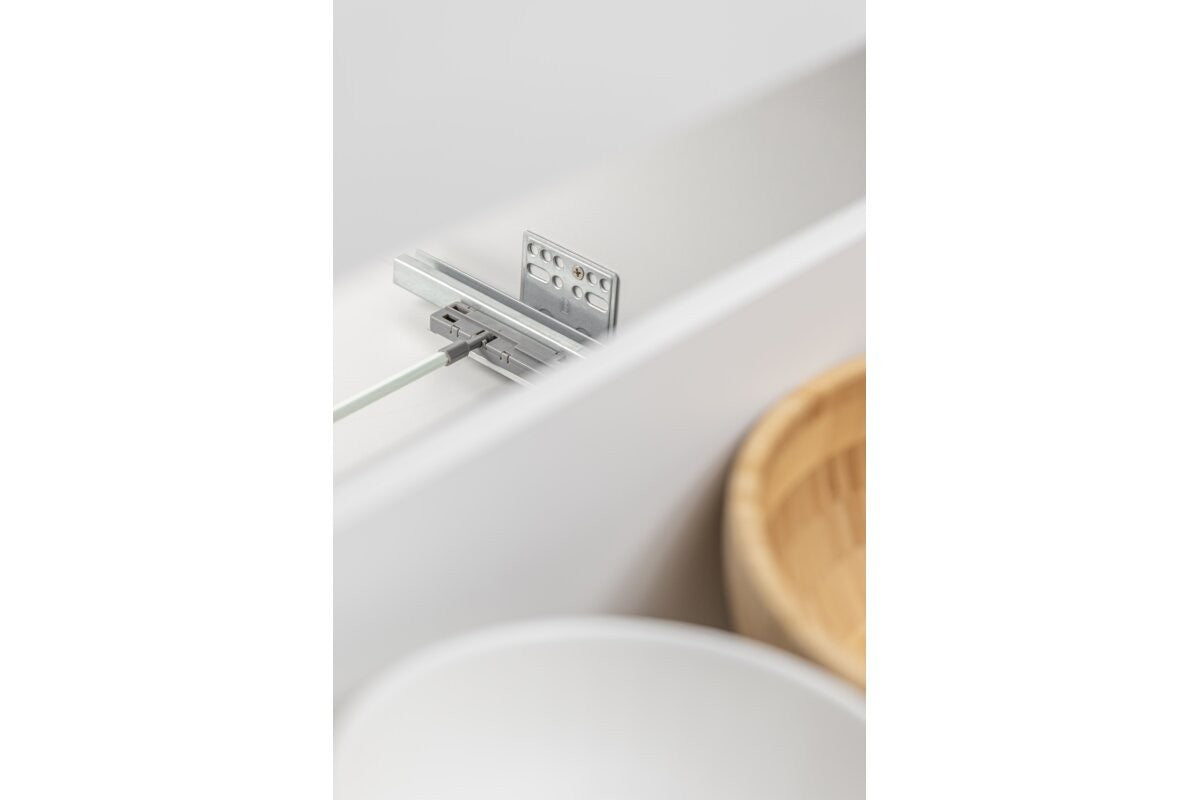

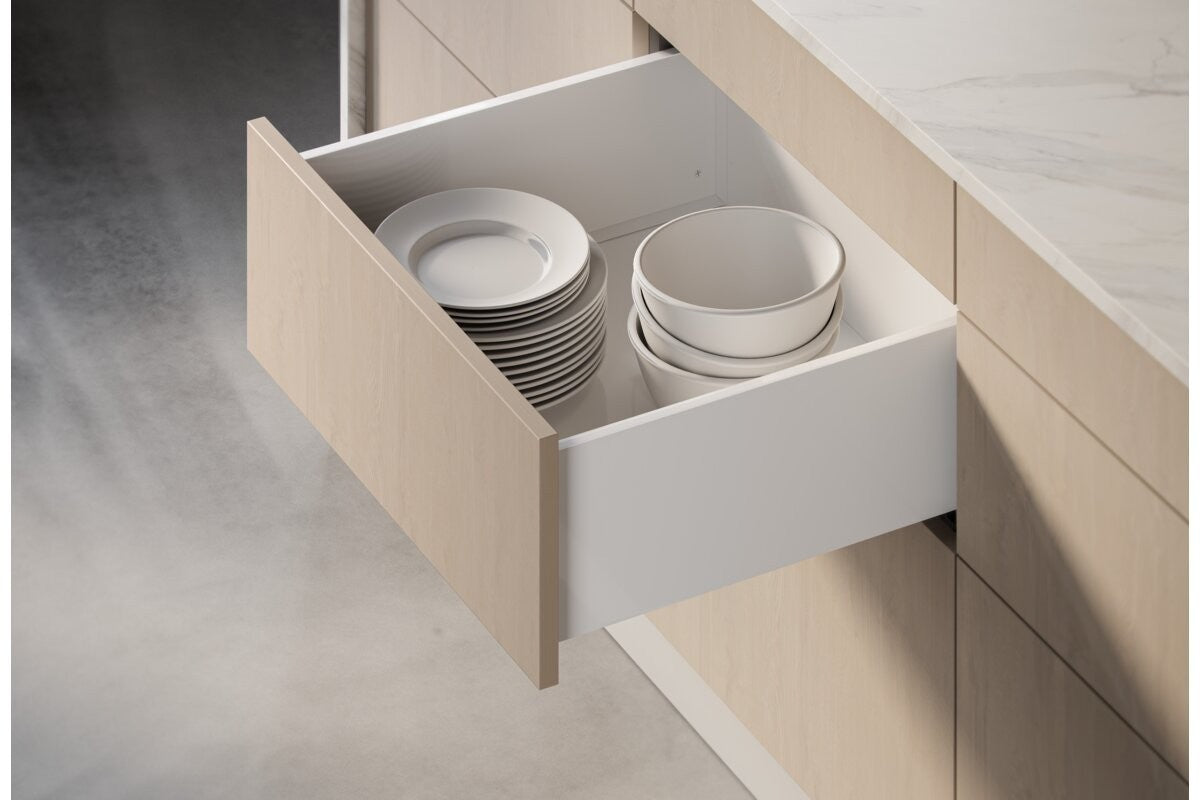

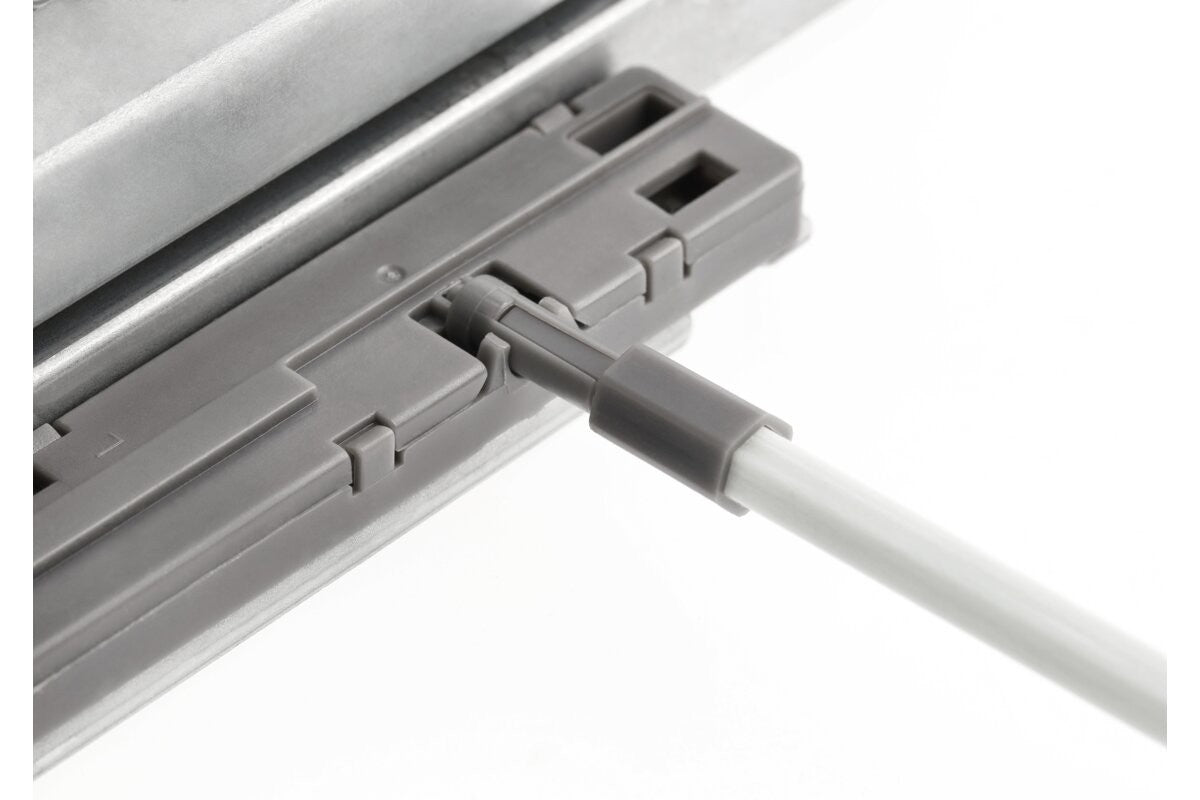

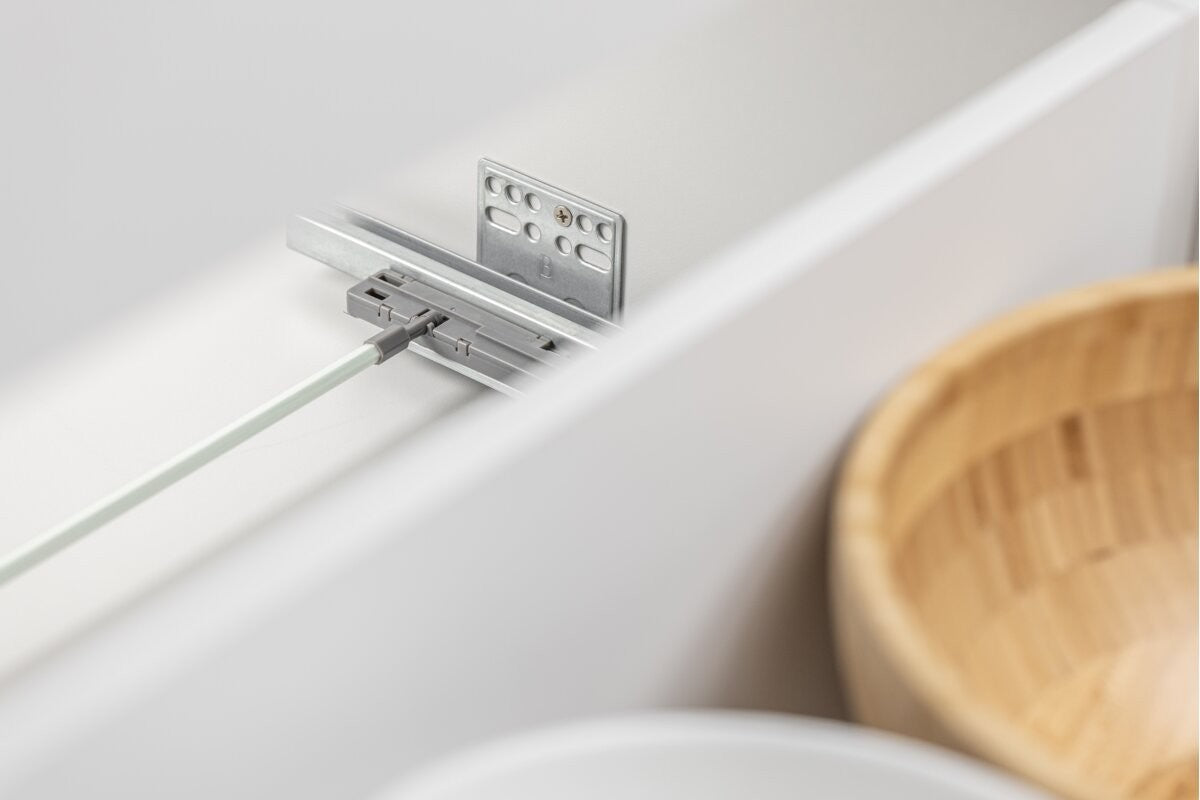

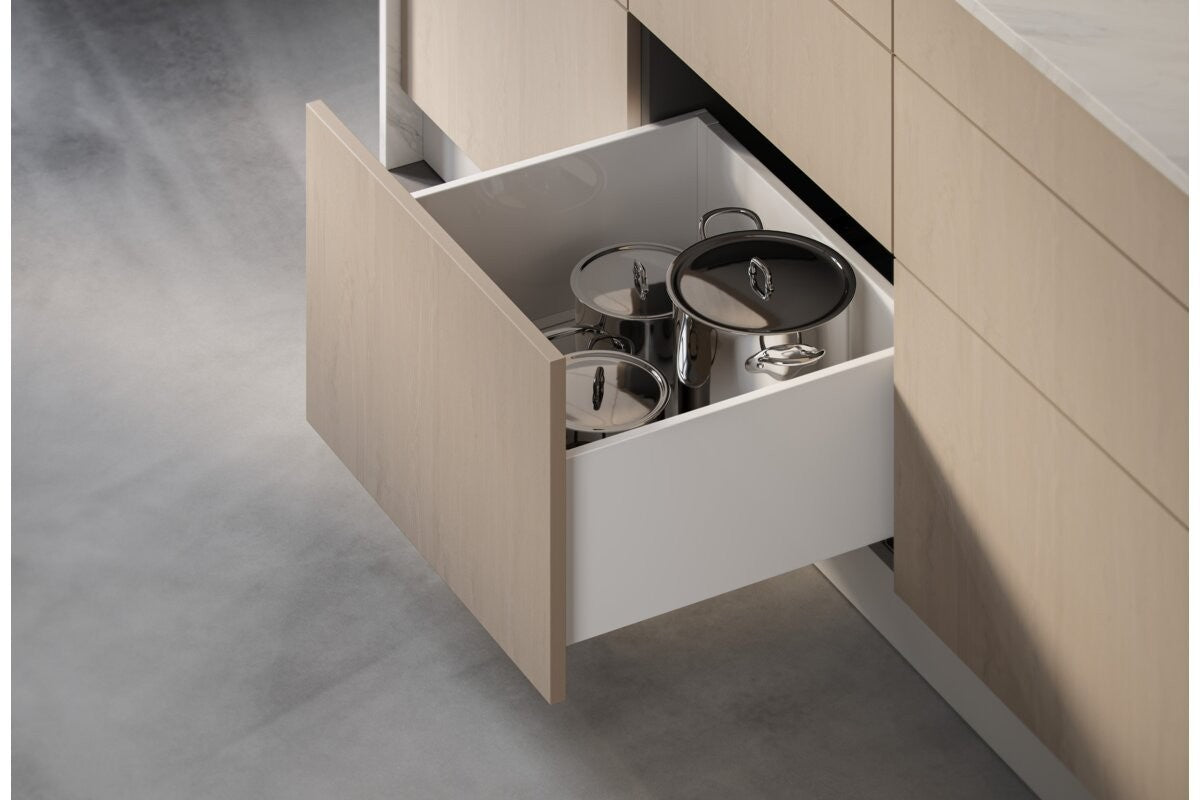

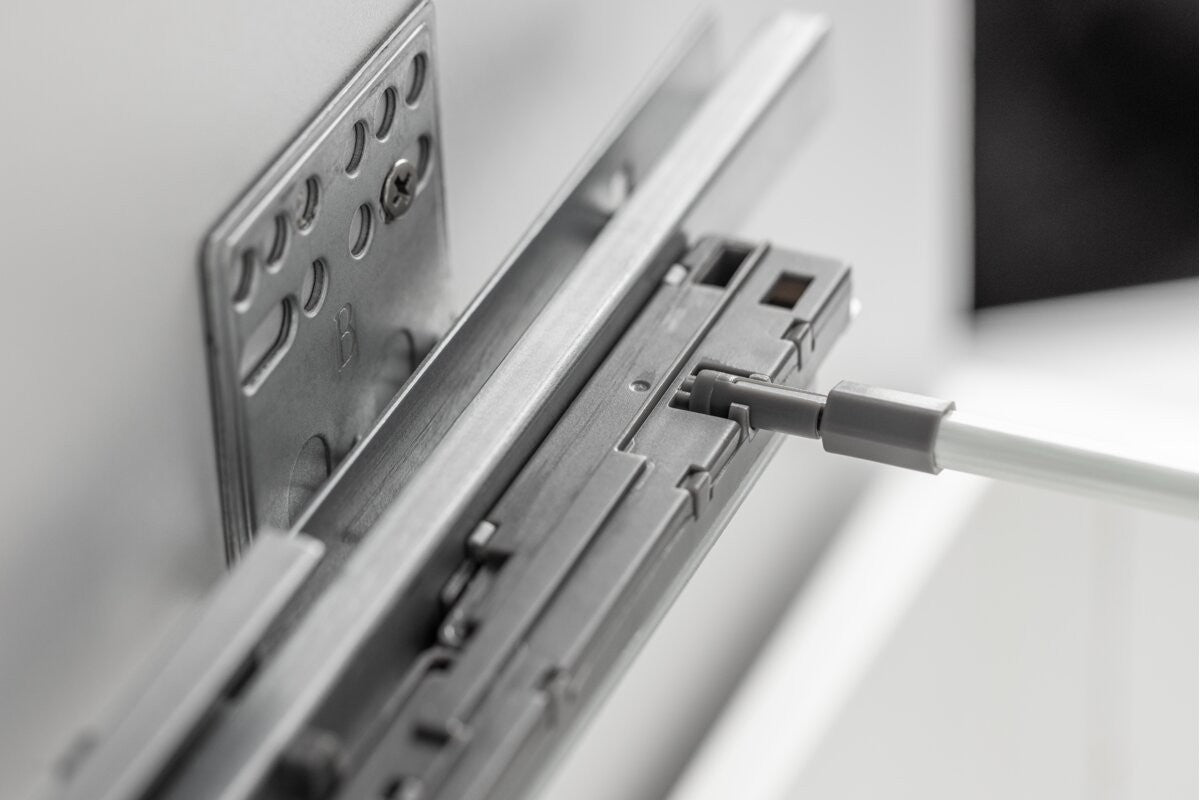

Both versions are full extension with the same sides and runners. Soft close is the standard choice for kitchens with handles. Push to open is for handleless doors and drawer fronts – press the front and the drawer opens; it does not have soft close, so pair it with a flush front and a light touch.
Cutting the base and back
Both parts are 16 mm board. Base width = internal cabinet width − 75 mm; base depth = kit length − 24 mm; back panel width = internal width − 87 mm, height to suit the side (84, 116, 167 or 199 mm). The free Axis Pro calculator gives you every size and the front-drilling positions. Read Axis Pro vs standard drawer boxes if you are weighing up the two routes.
Buy 10 or more kits and 10% comes off automatically; trade accounts get another 10% on everything. Dispatched from Peterborough the same or next working day.

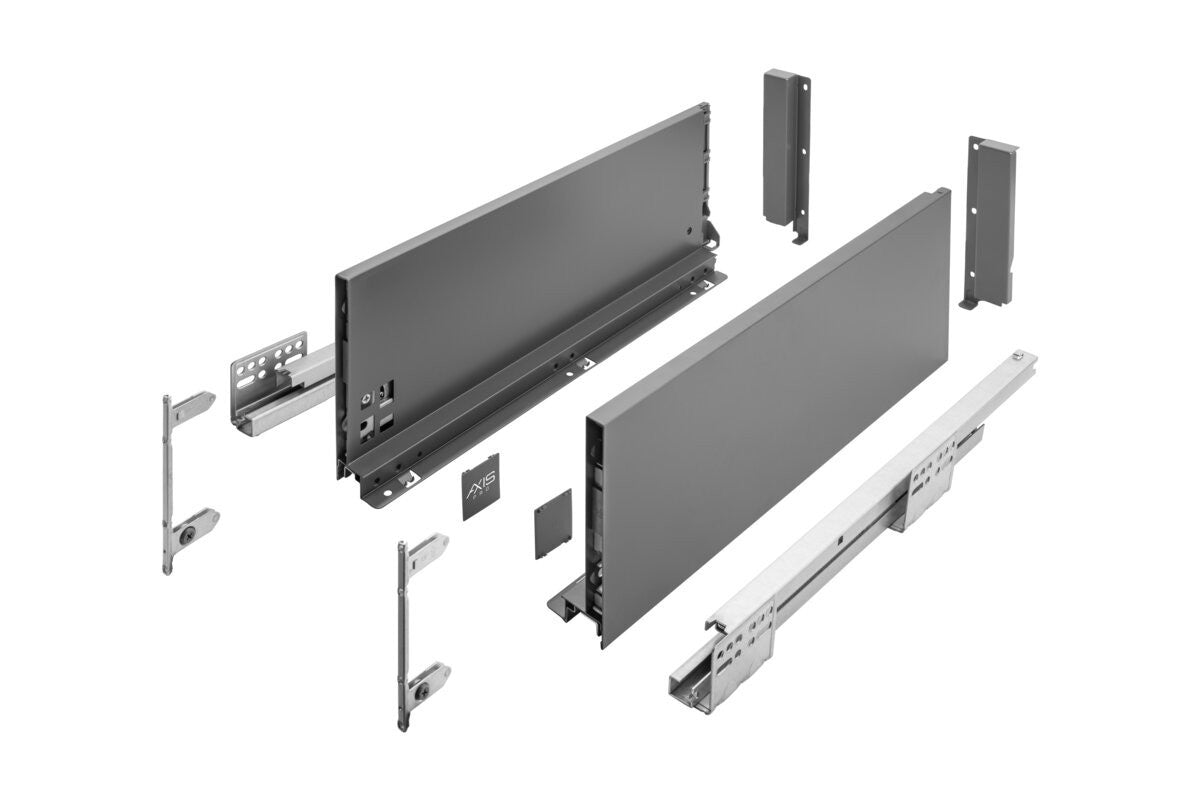

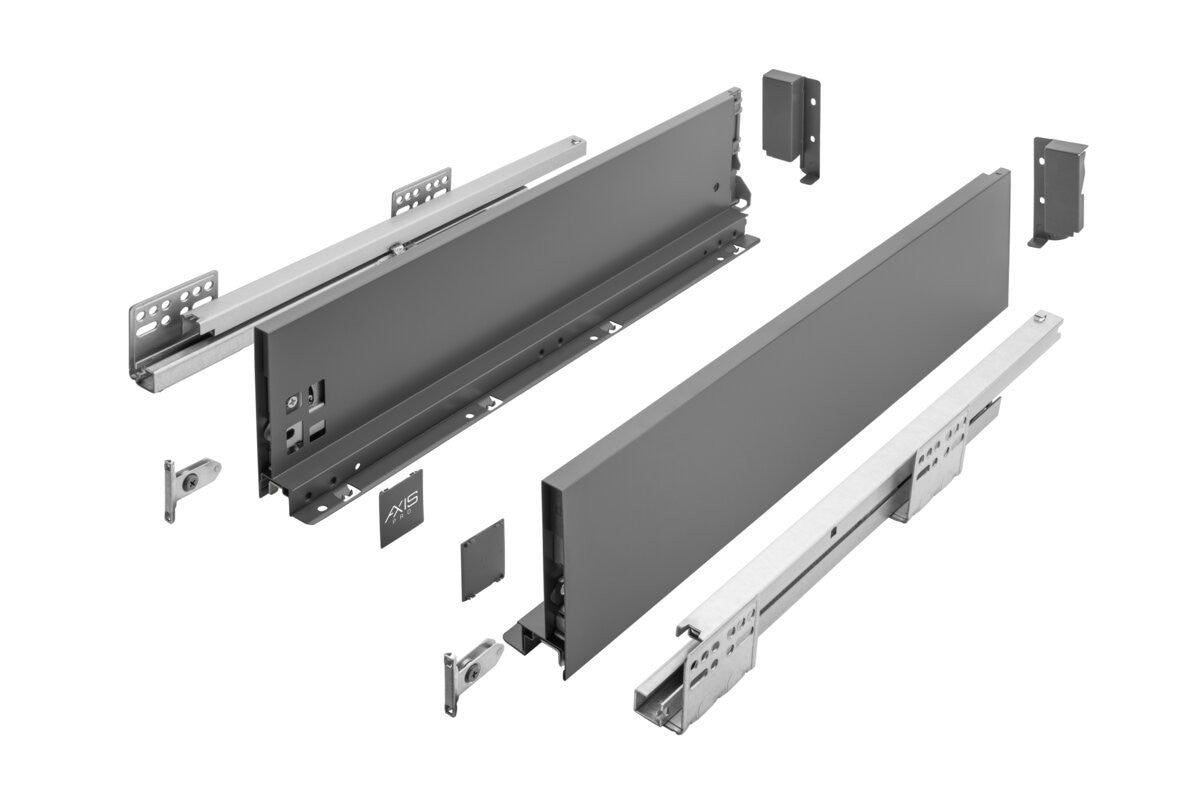

Buying a whole unit? Our 3-drawer Axis Pro kits (low, medium and high box for a 450 or 500 mm cabinet) and the 500 mm pan-drawer pair are matched sets at 5% off the separate price.
