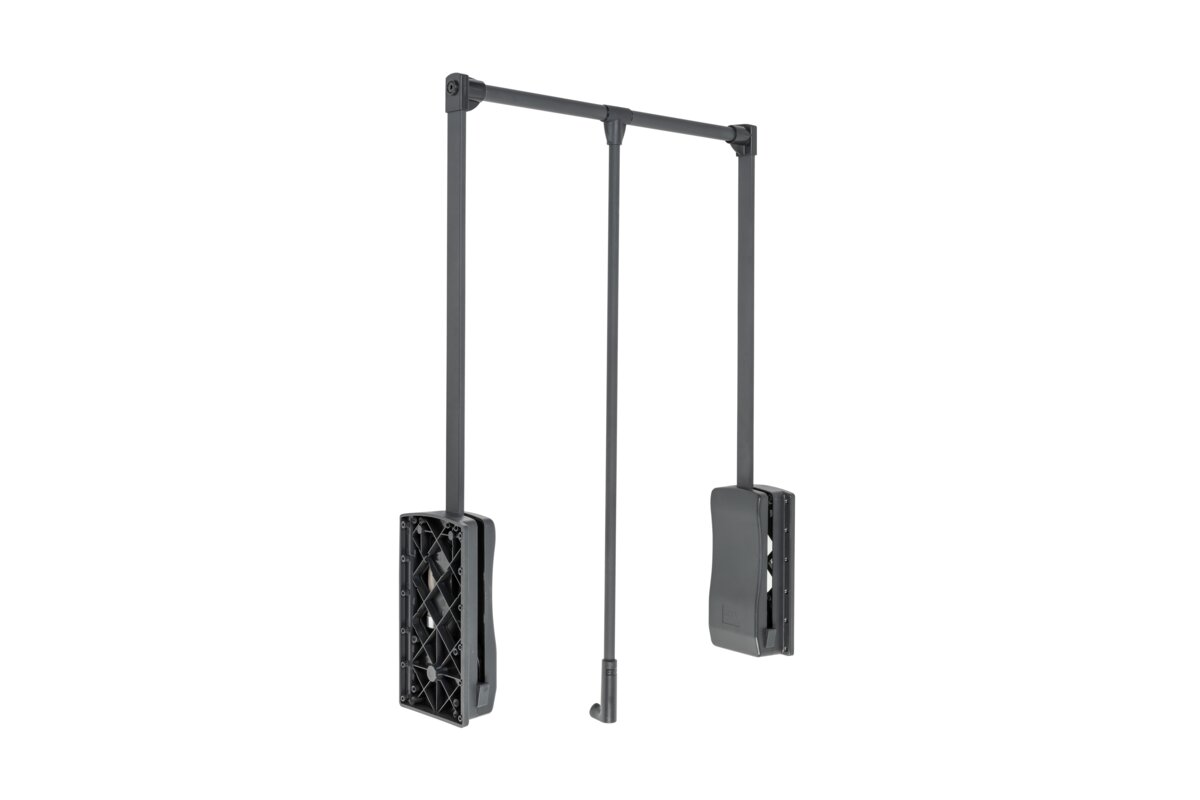

A pull-down wardrobe rail turns the top of a tall wardrobe from dead space into the easiest hanging you own: pull the handle, the rail swings down to shoulder height, take what you need and lift it back. Fitting one takes about half an hour with a drill and a tape measure. Here is how we do it.
Before you buy: measure the wardrobe
The rail is telescopic and comes in three width ranges, so measure the inside width of the wardrobe between the two side panels at the height you want the rail, and choose the range that covers it:
- 545–700 mm – single wardrobes and narrow fitted sections
- 645–910 mm – most double wardrobes and 800/900 mm fitted sections
- 875–1200 mm – wide fitted wardrobes and walk-in bays
If your measurement sits in two ranges, pick the one where it falls nearer the middle. The GTV rail carries up to 8 kg, which is a full rail of shirts, blouses and jackets; it is not designed for a wardrobe-width run of winter coats. It is available in white and anthracite – see the pull-down rail here.
Check the space it needs
The rail swings down and forward in an arc, so three things need checking before you drill:
- Depth. The arms need the full internal depth of a standard wardrobe (around 500 mm or more) to swing without hitting the back panel, and the door must be open or absent in front.
- Headroom. Mount the brackets so the rail, when raised, sits with hanging clothes clearing the shelf or floor below. Put the longest garment you will hang on a hanger and measure it; that plus about 50 mm is the minimum from rail to the obstruction below.
- Nothing in the arc. A fixed shelf, a drawer unit or a light in the swing path will stop the rail coming down. Sliding-door wardrobes work well because there is no door in the way; hinged doors just need to be open.
You will need
- Pull-down rail kit (the rail, two lift arms, bumper and fixing screws are included)
- Drill and 2–3 mm pilot bit, screwdriver or driver bit
- Tape measure, pencil, spirit level
- A second pair of hands for the first lift is handy but not essential
Fitting step by step
- Set the width. Extend the telescopic rail so the two arm brackets sit flat against the side panels with the rail central. Tighten the telescopic locking screws so the rail cannot creep.
- Mark the height. Hold one bracket against the side panel at the chosen height – with the rail raised, the top of the bracket is usually 80–100 mm below the wardrobe top or the shelf above, which keeps the arm clear of it as it swings. Mark the screw holes with a pencil.
- Transfer to the other side. Measure the bracket height from the wardrobe floor and mark the identical height on the opposite panel. Check with the level across the two marks: a rail fitted 3 mm out of level will drift to one side when it drops.
- Drill pilot holes. Pilot every screw hole – 18 mm MFC splits and the screws strip if you drive them straight in. Keep the drill square to the panel.
- Fix the first bracket. Screw the first arm bracket on firmly but leave the screws a quarter-turn loose for now.
- Fix the second bracket. Offer the rail across, locate the second bracket on its marks and screw it home. Now tighten the first bracket fully.
- Fit the bumper. Screw the shock-absorbing bumper to the side panel where the arm comes to rest when fully lowered, so the arm lands on rubber rather than board.
- Test empty. Pull the handle and let the rail come down. It should lower smoothly under the oil damper and return gently when lifted, with no scrape on the panels. If it catches, loosen the brackets and nudge the rail central.
- Load it. Add the clothes and test again. The damper is tuned for a loaded rail, so it will feel slightly firmer empty – that is normal.
Troubleshooting
The rail drops with a thud. Either it is overloaded (over 8 kg) or the bumper is not fitted where the arm lands. Lighten it or move the bumper.
It will not come down fully. Something is in the arc – usually a shelf edge or the door. Raise the brackets, or remove the obstruction.
It pulls to one side. The brackets are at different heights or the rail is not central in the telescopic tube. Re-level and re-centre.
Screws spinning in the panel. The panel is thin chipboard. Fit a 100 mm strip of 18 mm board behind the bracket position inside the wardrobe and screw through into that.
Make the most of the rest of the wardrobe
The pull-down rail sorts the top. For the bottom, a pull-out shoe drawer or a rotating shoe carousel takes the shoes off the floor, and pull-out baskets and trouser racks fill the middle. All of it is in our wardrobe storage range, made for 600–900 mm carcasses and dispatched from Peterborough.
Stuck on a fitting? WhatsApp us a photo – we fit these every week and will talk you through it.
